Standard COB LCD Module

The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.

Back

Model	Product type	Show contents	Outline size (mm)	Horizon (mm)	Display size mm/inch	Point spacing mm	Visual angle	Brightness	Pin	Interface	Instructions	Working temperature	Voltage	Driver chip model
1.7 inch 128X64 graphic LCD module \| STN + LCD display \| With white side backlight \| ST7565R controller HTM12864C02-11W-A3P	Graphic LCD Module	128x64	40.6x32.2x11.0	37.0x23.3	33.26x20.48	0.26x0.32	6H	white	FFC-18PIN	MCU	防靜電ESD 8KV	-20~70℃	+3.3V	ST7565R

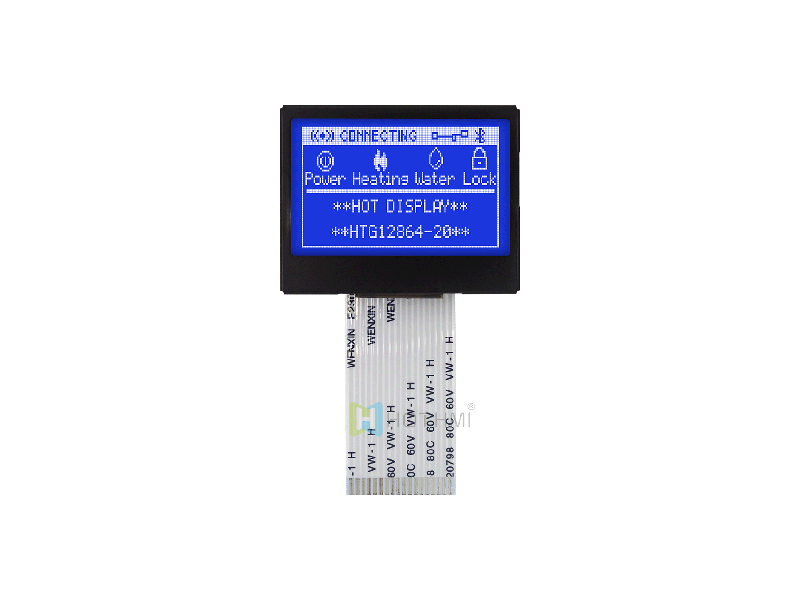

1.7-inch graphic dot matrix module/128x64 resolution/white text on blue background/ST7565R control chip/MCU HTM12864C02-25W-A3P	Graphic LCD Module	128x64	40.6x32.2x11.0	37.0x23.3	33.26x20.48	0.26x0.32	6H	white	FFC-18PIN	MCU	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7565R

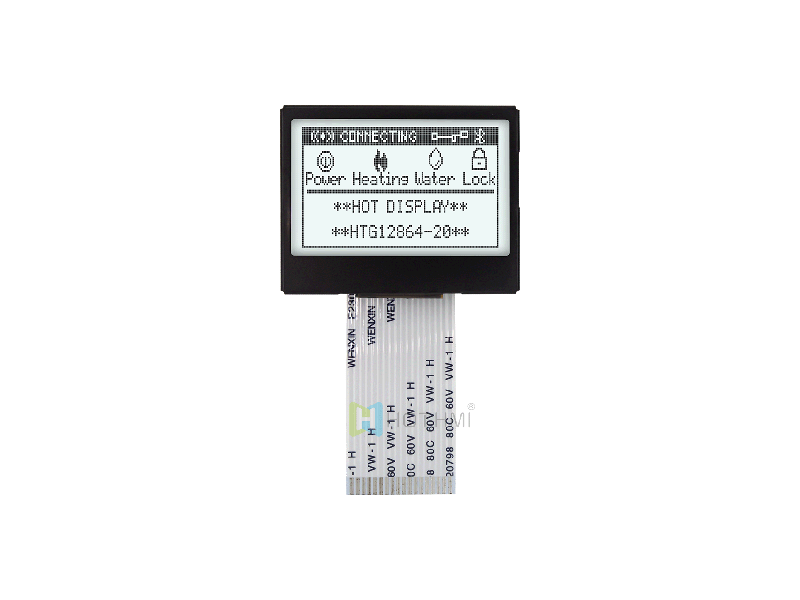

1.7 inch \| 128x64 Graphic LCD Display Module \| White background with grey text 128x64 Graphic LCD Module HTM12864C02-31W-A3P	Graphic LCD Module	128x64	40.6x32.2x11.0	37.0x23.3	33.26x20.48	0.26x0.32	6H	white	FFC-18PIN	MCU	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7565R
3.2 inch 128x64 graphic dot matrix module/red, green and blue backlight/Chinese character library/FSTN fully transmissive LCD/Arduino HTM12864Z-35S-A5P	Graphic LCD Module	128x64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	6H	R/G/B	20PIN	MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920
3.2 inch 128x64 yellow-green backlight graphic LCD module \| Graphic COB module \| STN+gray background \| Arduino HTM12864Z-11Y-A5P	Graphic LCD Module	128x64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	0.52x0.48			MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920
3.2 inch monochrome graphic LCD module \| 128x64 graphic LCD module \| ST7920 \| MCU interface \| for Arduino HTM12864Z-11W-A5P	Graphic LCD Module	128x64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	6H	white	20PIN	MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920

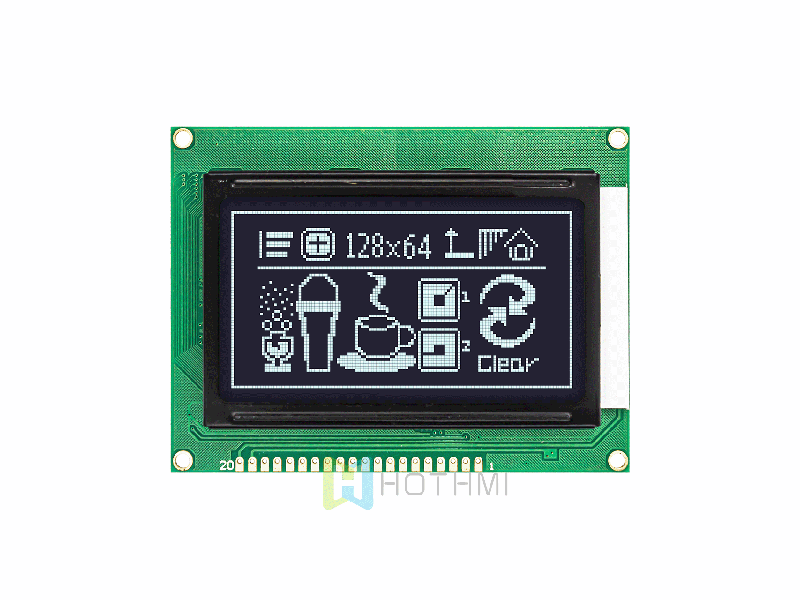

3.2 inch Black 128x64 Graphic LCD Display Module \| DFSTN Negative Display \| ST7920 \| Arduino HTM12864Z-41W-A5P	Graphic LCD Module	128x64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	6H	white	20PIN	MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920

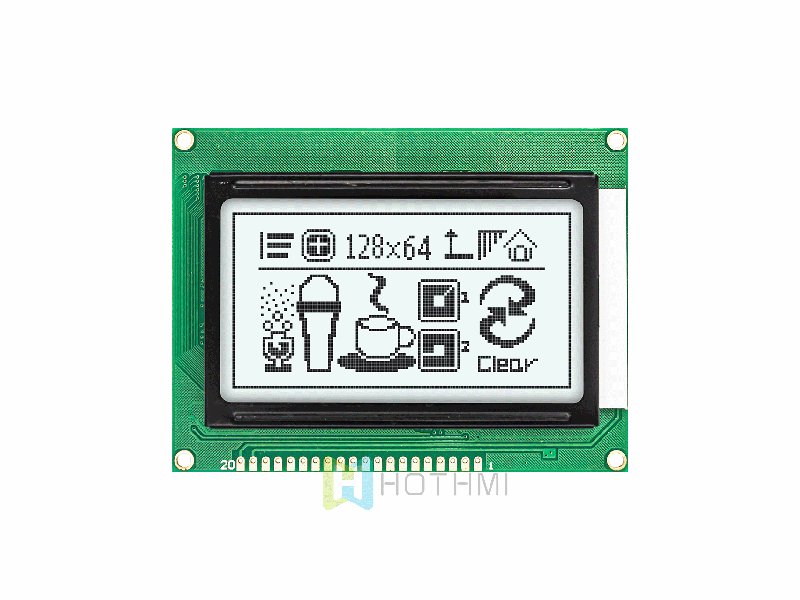

3.2 inch 128X64 monochrome graphic dot matrix module LCM/white background with gray text/ST7920 control chip/Arduino HTM12864Z-31W-A5P	Graphic LCD Module	128X64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	6H	white	20PIN	MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920

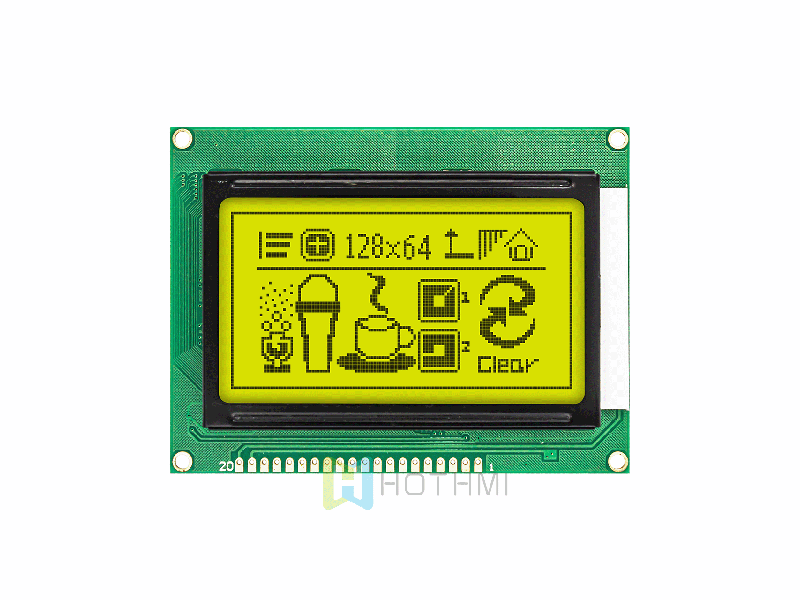

3.2" Graphic 128x64 LCD \| ST7920 \| Graphic LCD Display Module \| 5.0v \| Arduino HTM12864Z-01Y-A5P	Graphic LCD Module	128x64	93.0x70.0x10.0	71.4x38.7	66.52x33.24	0.52x0.48	6H	YG		MCU	Anti-static ESD 8KV	-20~70℃	5.0V	ST7920

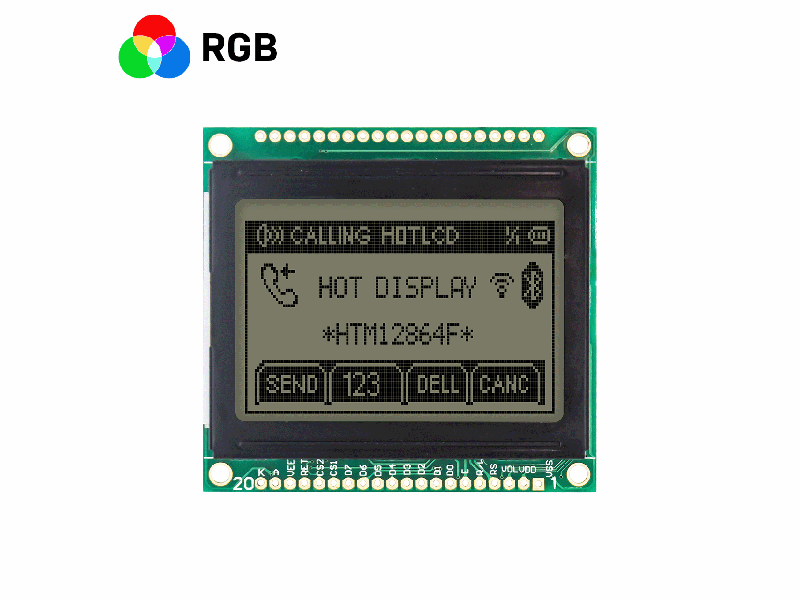

2" Graphic Transmissive LCD \| 128X64 Graphic LCD Module \| FSTN+ \| RGB \| Arduino HTM12864F-35S-A5P	Graphic LCD Module	128x64	54X50X6.5	43.5x29	40.92x24.92	0.32x0.39	6H	R/G/B	20PIN	MCU	Anti-static ESD 8KV	-20~70℃	5.0V	KS0108
