Product type：TFT
Show contents：NV3041
Outline size(mm) ：105.4x67.34x4.51
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：95.01x53.86
Product application：industrial control systems, handheld electronic devices,
Visual angle：IPS
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-22PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：+3.3V
Driver chip model：NV3041
This 4.3 inch TFT Display TFT-H043B29WQIST8C22 is a 4.3-inch capacitive touch display with a normally black panel design, a resolution of 480 (RGB) × 272 pixels, and supports NTSC 50% color gamut, which can present clear basic color performance. Its brightness is as high as 800 cd/m2, ensuring that the content can still be displayed clearly in bright environments. It is suitable for scenes such as industrial control, portable devices and outdoor displays.
This 4.3 inch TFT Display is equipped with NV3041 TFT driver chip and GT911 capacitive touch chip, and realizes efficient data transmission through 8-bit parallel interface. It also supports CTP-SDA/SCL touch control protocol, and is responsive and stable. The operating voltage range is VCI/VDD 3.0～3.3V, and the backlight drive voltage is 12.0V±1.0V (current 80mA), which is compatible with low-power design requirements. It has excellent environmental adaptability, with an operating temperature range of -30℃ to +80℃, and a storage temperature range of -85℃, which is suitable for harsh industrial environments.

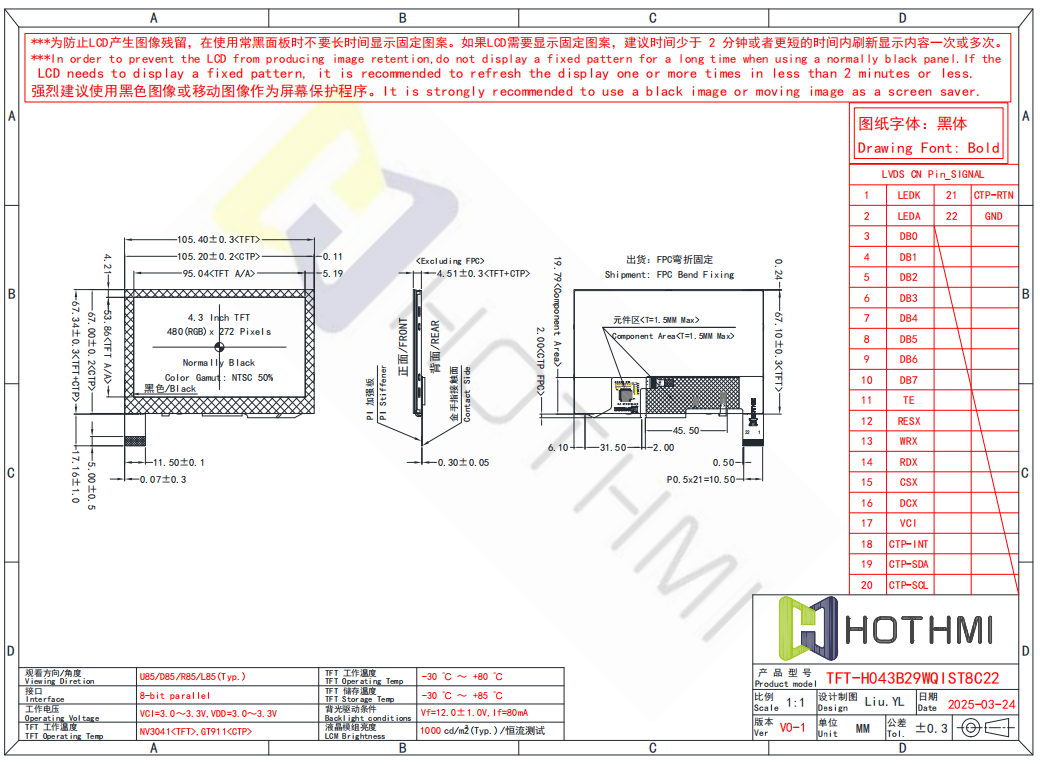

This 4.3 inch TFT Display adopts a compact structure design with a main body size of 67.10±0.3mm (typical value). The gold finger contact surface and FPC bending and fixing design further improve the installation stability and simplify the transportation process. The back of the screen is clearly marked with interface definitions and component layouts, supporting 21-pin connections with a P0.5 pitch, which is convenient for system integration.
Suggestions for use: To avoid image retention due to long-term static display of the black panel, it is recommended to refresh the content or switch the dynamic screen every 2 minutes; it is recommended to use a black background or dynamic screen saver to extend the life of the screen. This 4.3 inch TFT Display combines durability and high definition, and is an ideal display solution for industrial equipment, smart terminals and other fields.
